Tank Mounted Vertical

Electric Motor Mounted

Motor HP ASME Tank Size Splash Lubricated Model Pressure Lubricated Model Pump RPM CFM Displaced @175 psi CFM Delivered @175 psi Shipping Weight (lbs)
1.5 60 VT-715-60 VT-PL-715-60 400 7.8 5.8 522
2 60 VT-720-60 VT-PL-720-60 510 10 7.5 543
3 80 VT-730-80 VT-PL-730-80 540 14.8 11.1 632
5 80 VT-735-80 VT-PL-735-80 845 23 17.3 648
7.5 80 VT-745-120 VT-PL-745-120 655 35.4 26.9 915
10 120 VT-755-120 VT-PL-755-120 845 46 34.4 935

All models shown with two stage compressor pump
Other tank sizes available

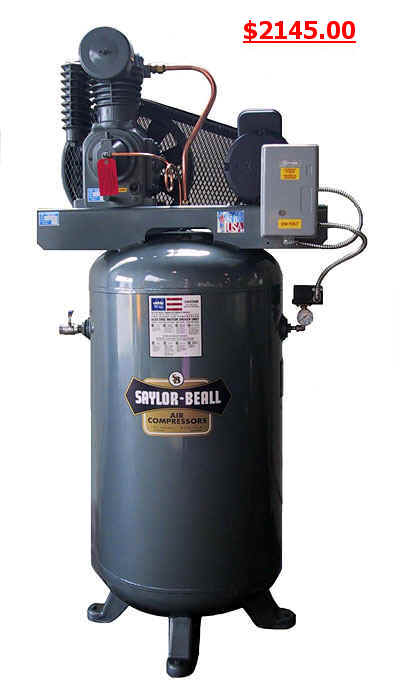

Model VT-735-80 With Magnetic Starter



Tank Mounted Horizontal

Electric Motor Driven

Motor HP ASME Tank Size Splash Lubricated Model Pressure Lubricated Model Pump RPM CFM Displaced @175 psi CFM Delivered @175 psi Shipping Weight (lbs)
1.5 60 715-60 PL-715-60 400 7.8 5.8 524
2 60 720-60 PL-720-60 510 10 7.5 545
3 80 730-80 PL-730-80 540 14.8 11.1 612
5 80 735-80 PL-735-80 845 23 17.3 628
7.5 80 745-80 PL-745-80 655 35.4 26.9 729
10 120 755-120 PL-755-120 845 46 34.4 875
15 120 451512 PL-451512 830 63.7 51 1195
20 200 92020 PL-92020 605 92.8 76.1 1643
25 200 92520 PL-92520 710 109 89.6 1657
30 240 93024 PL-93024 830 127.4 101.1 1893

Gasoline Engine Driven

Motor HP ASME Tank Size Splash Lubricated Model Pressure Lubricated Model Pump RPM CFM Displaced @175 psi CFM Delivered @175 psi Shipping Weight (lbs)
13 30 UL-753 UL-PL-753 800 21.6 16.2 543
18 80 UL-765 UL-PL-765 825 44.6 33.4 954
25 120 452512GC PL-452512GC 706 53.8 43 1205

All models shown with two stage compressor pump
Other tank sizes available

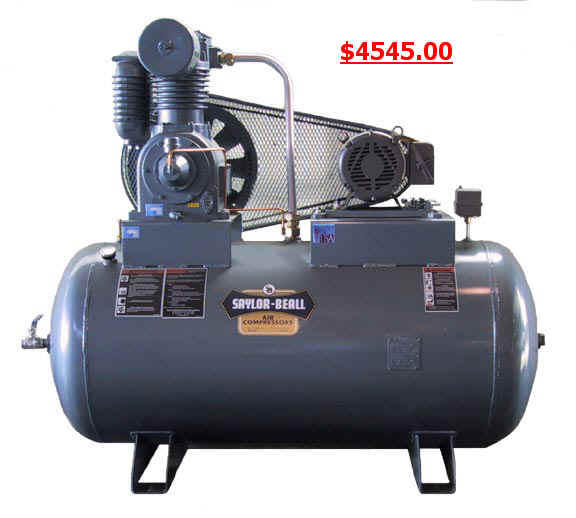

Model 451520 Without Magnetic Starter





Pumps

Motor HP ASME Tank Size Splash Lubricated Model Pressure Lubricated Model Pump RPM CFM Displaced @175 psi CFM Delivered @175 psi Shipping Weight (lbs)
1.5-2 none 703 PL-703 510 10 7.5 213
3-5 none 705 PL-705 845 23 17.3 219
7.5-10 none 707 PL-707 845 46 34.4 338
10-15 none 4500 PL-4500 830 63.7 51 469
15-30 none 9000 PL-9000 830 127.4 101.9 666


All models available in splash or pressure lubricated versions.

Head unloaders available for continuous run applications.

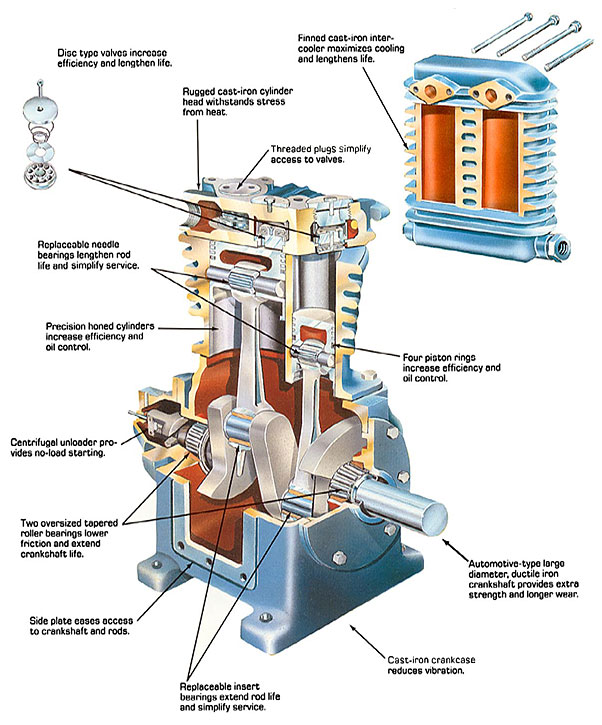

703-705 air compressor pump
Model 703-705
Model 707
Model 4500
Model 9000
